Heavy Machinery Overview
We have a team of experienced machinists with a wide range of machining and fitting experience in various industries.
We are happy to support other engineering companies with their heavy machining requirements.
Three large Centre Lathes with up to:
20,000kg maximum job weight
12 metres between centres
1,550mm diameter swing over bed
1,250mm diameter swing over saddle
1,750mm diameter swing in gap
axial indexing on spindle
milling, drilling, linishing and grinding to full capacity of machine
CNC capability up to 6 metres
Vertical Lathe with:
18,000kg table capacity
3,300mm maximum OD machineable
3,000mm diameter table
2,300mm maximum vertical machining height
2,300mm maximum height of workpiece
1.02 to 92 Revs per minute table rotation
This machine includes a number of attachments including a taper turning and threading attachment and electronic copying attachment.
Floor Borer with:
12,000kg capacity on rotary table
30,000kg capacity on floor plates
3,200mm horizontal traverse
3,200mm vertical traverse
1,700mm diameter facing
Horizontal Borer with:
5,000kg capacity on table
1,250mm horizontal traverse
1,120mm vertical traverse
600mm diameter facing
Milling machines with:
5,000kg capacity on table
1,900mm longitudinal traverse
800mm cross traverse
1,050mm vertical traverse
CNC machining centres
Deep hole drilling up to 210mm diameter and 1,200mm deep

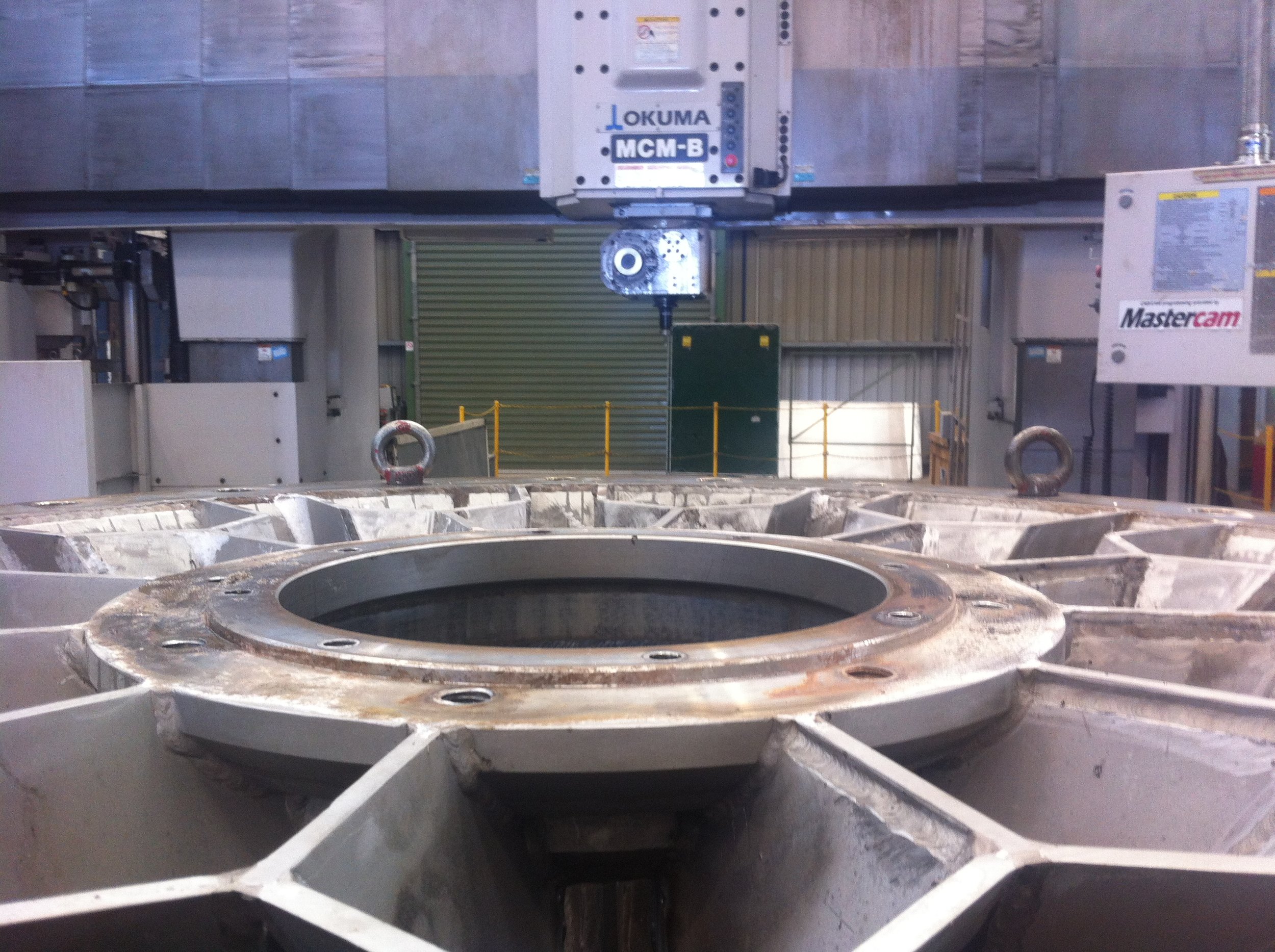

Okuma Double Column Machining Centre with:
3050mm between columns
6300mm table length
2100mm from table to spindle
43,000kg capacity on table
2 spindle swivel head for one set-up 5 face machining
highly rigid ram-type swivel head for accuracy and high metal removal rates
double column construction for rock solid rigidity and extra accuracy
